In standard MCPCBs, heat must pass through a dielectric isolation layer before reaching the metal base. While electrically isolating, the dielectric still introduces thermal resistance. In Thermoelectric Separation (Direct-to-Base) architecture, the thermal slug pad of the component is directly in contact with a raised pedestal machined directly from the copper base, while the electrical traces remain insulated on the dielectric layer. This eliminates the dielectric thermal barrier entirely, dropping the thermal resistance from > 1.0°C/W down to < 0.1°C/W and lowering junction temperatures by up to 30°C.

We offer a full spectrum of dielectric isolation layers ranging from 1.0 W/m·K, 2.0 W/m·K, 3.0 W/m·K up to 8.0 W/m·K ceramic-filled polymers. To ensure complete dielectric safety in high-voltage circuits, every production panel is subject to 100% automated Hipot dielectric withstand testing. We support test parameters from 3000V AC up to 6000V AC (or > 4000V DC) with leakage current limits strictly configured to < 0.5 mA, fully conforming to UL 796 and IPC-4101 standards.

Fabricating double-sided metal-core boards with through-hole connectivity requires preventing electrical shorts to the conductive metal core. We first CNC-drill oversized clearance holes through the aluminum or copper base plate. These cavities are vacuum-filled with a specialized high-voltage dielectric epoxy resin and thermally cured. We then precision-drill secondary holes through the center of the cured epoxy plugs, chemical-desmear, and electroplate copper down the hole barrel. This creates fully functional plated through-holes (PTH) insulated from the metallic core.

Thick metallic substrates present unique mechanical machining challenges. We employ high-torque CNC milling centers running diamond-coated carbide router bits with active air-oil mist cooling to deliver burr-free edges and tight dimensional outline tolerances within ±0.1 mm. For panelization, we use automated high-precision V-scoring equipment calibrated to maintain accurate residual web thickness. Furthermore, all panels undergo controlled hot-press flattening procedures to ensure overall panel warpage strictly complies with < 0.5%, guaranteeing flush mechanical contact with external heatsinks.

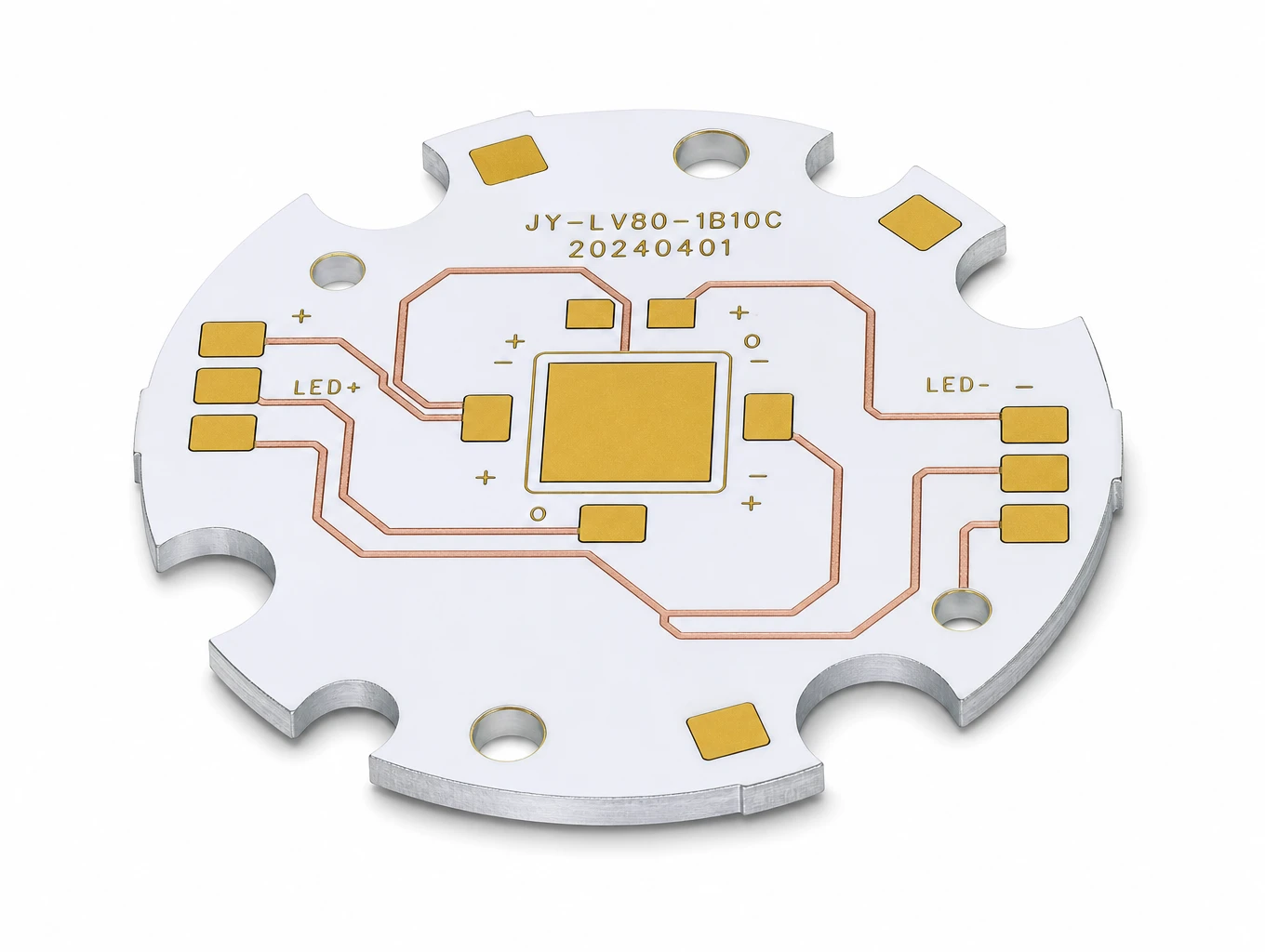

For LED lighting applications, we offer high-reflectivity liquid photoimageable (LPI) white solder masks with > 85%–92% optical reflectivity that resist yellowing under high thermal baking and long-term UV radiation exposure. For industrial power and motor control boards, standard dark green, matte black, or blue solder masks are available. Our standard surface finishes include Electroless Nickel Immersion Gold (ENIG) for fine-pitch pads and flat thermal interfaces, Lead-Free HASL for cost-effective through-hole soldering, and ENEPIG for wire-bondable Chip-on-Board (COB) applications.
